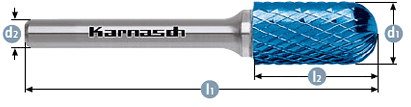

Цилиндр со сферическим концом
Примеры применения
|
Тип формы C |
| Маркировка WRC |
Покрытие
|
Нажмите для выбора покрытия
 |
 |
 |
 |
 |
 |
 |
||||||
| d1 | l2 | d2 | l1 | паяные | VHM | 115021 | 115020 | 115022 | 115025 | 115027 | 115023 | 115024 |
| HP-3 | HP-2 | HP-4 | HP-7 | HP-1 | HP-5 | HP-6 | ||||||
| 2 | 11 | 3 | 38 |  | 115021-020 | 115020-020 | 115022-020 | 115025-020 | 115027-020 | 115023-020 | 115024-020 | |
| 2,5 | 11 | 3 | 38 | | 115021-022 | 115020-022 | 115022-022 | 115025-022 | 115027-022 | 115023-022 | 115024-022 | |
| 3 | 14 | 3 | 38 | | 115021-025 | 115020-025 | 115022-025 | 115025-025 | 115027-025 | 115023-025 | 115024-025 | |
| 3 | 14 | 3 | 50 | | 115021-030 | 115020-030 | 115022-030 | 115025-030 | 115027-030 | 115023-030 | 115024-030 | |
| 3 | 14 | 3 | 60 | |
115021-032 | 115020-032 | 115022-032 | 115025-032 | 115027-032 | 115023-032 | 115024-032 | |
| 3 | 14 | 3 | 75 | | 115021-035 | 115020-035 | 115022-035 | 115025-035 | 115027-035 | 115023-035 | 115024-035 | |
| 3 | 14 | 3 | 100 | | 115021-040 | 115020-040 | 115022-040 | 115025-040 | 115027-040 | 115023-040 | 115024-040 | |
| 3 | 12,7 | 6 | 50 | | 115021-042 | 115020-042 | 115022-042 | 115025-042 | 115027-042 | 115023-042 | 115024-042 | |
| 3 | 30* | 6 | 60 | |
115021-043 | 115020-043 | 115022-043 | 115025-043 | 115027-043 | 115023-043 | 115024-043 | |
| 4 | 16 | 6 | 50 | | 115021-045 | 115020-045 | 115022-045 | 115025-045 | 115027-045 | 115023-045 | 115024-045 | |
| 4 | 30* | 6 | 60 | |
115021-046 | 115020-046 | 115022-046 | 115025-046 | 115027-046 | 115023-046 | 115024-046 | |
| 5 | 12,7 | 3 | 38 | | 115021-047 | 115020-047 | 115022-047 | 115025-047 | 115027-047 | 115023-047 | 115024-047 | |
| 5 | 16 | 6 | 50 | | 115021-049 | 115020-049 | 115022-049 | 115025-049 | 115027-049 | 115023-049 | 115024-049 | |
| 6 | 12,7 | 3 | 44 | | 115021-050 | 115020-050 | 115022-050 | 115025-050 | 115027-050 | 115023-050 | 115024-050 | |
| 6 | 18 | 6 | 50 | | 115021-055 | 115020-055 | 115022-055 | 115025-055 | 115027-055 | 115023-055 | 115024-055 | |
| 6 | 18 | 6 | 60 | |
115021-056 | 115020-056 | 115022-056 | 115025-056 | 115027-056 | 115023-056 | 115024-056 | |
| 6 | 18 | 6 | 80 | |
115021-058 | 115020-058 | 115022-058 | 115025-058 | 115027-058 | 115023-058 | 115024-058 | |
| 6 | 18 | 6 | 100 | | 115021-060 | 115020-060 | 115022-060 | 115025-060 | 115027-060 | 115023-060 | 115024-060 | |
| 6 | 18 | 6 | 150 | | 115021-065 | 115020-065 | 115022-065 | 115025-065 | 115027-065 | 115023-065 | 115024-065 | |
| 6 | 25 | 6 | 50 | | 115021-070 | 115020-070 | 115022-070 | 115025-070 | 115027-070 | 115023-070 | 115024-070 | |
| 8 | 20 | 6 | 65 | | 115021-075 | 115020-075 | 115022-075 | 115025-075 | 115027-075 | 115023-075 | 115024-075 | |
| 8 | 20 | 6 | 170 | | 115021-080 | 115020-080 | 115022-080 | 115025-080 | 115027-080 | 115023-080 | 115024-080 | |
| 10 | 20 | 6 | 65 | | 115021-085 | 115020-085 | 115022-085 | 115025-085 | 115027-085 | 115023-085 | 115024-085 | |
| 10 | 20 | 6 | 170 | | 115021-090 | 115020-090 | 115022-090 | 115025-090 | 115027-090 | 115023-090 | 115024-090 | |
| 10 | 25 | 6 | 70 | | 115021-095 | 115020-095 | 115022-095 | 115025-095 | 115027-095 | 115023-095 | 115024-095 | |
| 11 | 25 | 6 | 70 | | 115021-097 | 115020-097 | 115022-097 | 115025-097 | 115027-097 | 115023-097 | 115024-097 | |
| 12 | 10 | 6 | 54 | | 115021-099 | 115020-099 | 115022-099 | 115025-099 | 115027-099 | 115023-099 | 115024-099 | |
| 12 | 20 | 6 | 65 | | 115021-100 | 115020-100 | 115022-100 | 115025-100 | 115027-100 | 115023-100 | 115024-100 | |
| 12 | 25 | 6 | 70 | | 115021-105 | 115020-105 | 115022-105 | 115025-105 | 115027-105 | 115023-105 | 115024-105 | |
| 12 DIN | 25 | 6 | 70 | | 115021-107 | 115020-107 | 115022-107 | 115025-107 | 115027-107 | 115023-107 | 115024-107 | |
| 12 | 25 | 6 | 175 | | 115021-110 | 115020-110 | 115022-110 | 115025-110 | 115027-110 | 115023-110 | 115024-110 | |
| 12 | 25 | 8 | 70 | | 115021-115 | 115020-115 | 115022-115 | 115025-115 | 115027-115 | 115023-115 | 115024-115 | |
| 16 | 25 | 6 | 70 | | 115021-120 | 115020-120 | 115022-120 | 115025-120 | 115027-120 | 115023-120 | 115024-120 | |
| 16 | 25 | 8 | 70 | | 115021-125 | 115020-125 | 115022-125 | 115025-125 | 115027-125 | 115023-125 | 115024-125 | |
| 20 | 25 | 6 | 70 | | 115021-130 | 115020-130 | 115022-130 | 115025-130 | 115027-130 | 115023-130 | 115024-130 | |
| 20 | 25 | 8 | 70 | | 115021-135 | 115020-135 | 115022-135 | 115025-135 | 115027-135 | 115023-135 | 115024-135 | |
 |
 |
 |
 |
 |
 |
 |
||||||
| d1 | l2 | d2 | l1 | паяные | VHM | 113021 | 113020 | 113022 | 113025 | 113027 | 113023 | 113024 |
| HP-3 | HP-2 | HP-4 | HP-7 | HP-1 | HP-5 | HP-6 | ||||||
| 2 | 11 | 3 | 38 | | 113021-020 | 113020-020 | 113022-020 | 113025-020 | 113027-020 | 113023-020 | 113024-020 | |
| 2,5 | 11 | 3 | 38 | | 113021-022 | 113020-022 | 113022-022 | 113025-022 | 113027-022 | 113023-022 | 113024-022 | |
| 3 | 14 | 3 | 38 | | 113021-025 | 113020-025 | 113022-025 | 113025-025 | 113027-025 | 113023-025 | 113024-025 | |
| 3 | 14 | 3 | 50 | | 113021-030 | 113020-030 | 113022-030 | 113025-030 | 113027-030 | 113023-030 | 113024-030 | |
| 3 | 14 | 3 | 60 | |
113021-032 | 113020-032 | 113022-032 | 113025-032 | 113027-032 | 113023-032 | 113024-032 | |
| 3 | 14 | 3 | 75 | | 113021-035 | 113020-035 | 113022-035 | 113025-035 | 113027-035 | 113023-035 | 113024-035 | |
| 3 | 14 | 3 | 100 | | 113021-040 | 113020-040 | 113022-040 | 113025-040 | 113027-040 | 113023-040 | 113024-040 | |
| 3 | 12,7 | 6 | 50 | | 113021-042 | 113020-042 | 113022-042 | 113025-042 | 113027-042 | 113023-042 | 113024-042 | |
| 3 | 30* | 6 | 60 | |
113021-043 | 113020-043 | 113022-043 | 113025-043 | 113027-043 | 113023-043 | 113024-043 | |
| 4 | 16 | 6 | 50 | | 113021-045 | 113020-045 | 113022-045 | 113025-045 | 113027-045 | 113023-045 | 113024-045 | |
| 4 | 30* | 6 | 60 | |
113021-046 | 113020-046 | 113022-046 | 113025-046 | 113027-046 | 113023-046 | 113024-046 | |
| 5 | 12,7 | 3 | 38 | | 113021-047 | 113020-047 | 113022-047 | 113025-047 | 113027-047 | 113023-047 | 113024-047 | |
| 5 | 16 | 6 | 50 | | 113021-049 | 113020-049 | 113022-049 | 113025-049 | 113027-049 | 113023-049 | 113024-049 | |
| 6 | 12,7 | 3 | 44 | | 113021-050 | 113020-050 | 113022-050 | 113025-050 | 113027-050 | 113023-050 | 113024-050 | |
| 6 | 18 | 6 | 50 | | 113021-055 | 113020-055 | 113022-055 | 113025-055 | 113027-055 | 113023-055 | 113024-055 | |
| 6 | 18 | 6 | 60 | |
113021-056 | 113020-056 | 113022-056 | 113025-056 | 113027-056 | 113023-056 | 113024-056 | |
| 6 | 18 | 6 | 80 | |
113021-058 | 113020-058 | 113022-058 | 113025-058 | 113027-058 | 113023-058 | 113024-058 | |
| 6 | 18 | 6 | 100 | | 113021-060 | 113020-060 | 113022-060 | 113025-060 | 113027-060 | 113023-060 | 113024-060 | |
| 6 | 18 | 6 | 150 | | 113021-065 | 113020-065 | 113022-065 | 113025-065 | 113027-065 | 113023-065 | 113024-065 | |
| 6 | 25 | 6 | 50 | | 113021-070 | 113020-070 | 113022-070 | 113025-070 | 113027-070 | 113023-070 | 113024-070 | |
| 8 | 20 | 6 | 65 | | 113021-075 | 113020-075 | 113022-075 | 113025-075 | 113027-075 | 113023-075 | 113024-075 | |
| 8 | 20 | 6 | 170 | | 113021-080 | 113020-080 | 113022-080 | 113025-080 | 113027-080 | 113023-080 | 113024-080 | |
| 10 | 20 | 6 | 65 | | 113021-085 | 113020-085 | 113022-085 | 113025-085 | 113027-085 | 113023-085 | 113024-085 | |
| 10 | 20 | 6 | 170 | | 113021-090 | 113020-090 | 113022-090 | 113025-090 | 113027-090 | 113023-090 | 113024-090 | |
| 10 | 25 | 6 | 70 | | 113021-095 | 113020-095 | 113022-095 | 113025-095 | 113027-095 | 113023-095 | 113024-095 | |
| 11 | 25 | 6 | 70 | | 113021-097 | 113020-097 | 113022-097 | 113025-097 | 113027-097 | 113023-097 | 113024-097 | |
| 12 | 10 | 6 | 54 | | 113021-099 | 113020-099 | 113022-099 | 113025-099 | 113027-099 | 113023-099 | 113024-099 | |
| 12 | 20 | 6 | 65 | | 113021-100 | 113020-100 | 113022-100 | 113025-100 | 113027-100 | 113023-100 | 113024-100 | |
| 12 | 25 | 6 | 70 | | 113021-105 | 113020-105 | 113022-105 | 113025-105 | 113027-105 | 113023-105 | 113024-105 | |
| 12 DIN | 25 | 6 | 70 | | 113021-107 | 113020-107 | 113022-107 | 113025-107 | 113027-107 | 113023-107 | 113024-107 | |
| 12 | 25 | 6 | 175 | | 113021-110 | 113020-110 | 113022-110 | 113025-110 | 113027-110 | 113023-110 | 113024-110 | |
| 12 | 25 | 8 | 70 | | 113021-115 | 113020-115 | 113022-115 | 113025-115 | 113027-115 | 113023-115 | 113024-115 | |
| 16 | 25 | 6 | 70 | | 113021-120 | 113020-120 | 113022-120 | 113025-120 | 113027-120 | 113023-120 | 113024-120 | |
| 16 | 25 | 8 | 70 | | 113021-125 | 113020-125 | 113022-125 | 113025-125 | 113027-125 | 113023-125 | 113024-125 | |
| 20 | 25 | 6 | 70 | | 113021-130 | 113020-130 | 113022-130 | 113025-130 | 113027-130 | 113023-130 | 113024-130 | |
| 20 | 25 | 8 | 70 | | 113021-135 | 113020-135 | 113022-135 | 113025-135 | 113027-135 | 113023-135 | 113024-135 | |
