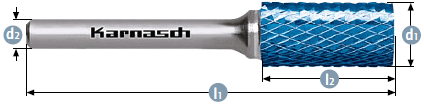

Цилиндр с гладким торцом
Примеры применения
|
Тип формы A |
| Маркировка ZYA |
Покрытие
|
Нажмите для выбора покрытия
 |
 |
 |
 |
 |
 |
 |
||||||
| d1 | l2 | d2 | l1 | паяные | VHM | 115001 | 115000 | 115002 | 115005 | 115007 | 115003 | 115004 |
| HP-3 | HP-2 | HP-4 | HP-7 | HP-1 | HP-5 | HP-6 | ||||||
| 1,5 | 6 | 3 | 38 |  | 115001-015 | 115000-015 | 115002-015 | 115005-015 | 115007-015 | 115003-015 | 115004-015 | |
| 2 | 11 | 3 | 38 | | 115001-025 | 115000-025 | 115002-025 | 115005-025 | 115007-025 | 115003-025 | 115004-025 | |
| 2,5 | 11 | 3 | 38 | | 115001-027 | 115000-027 | 115002-027 | 115005-027 | 115007-027 | 115003-027 | 115004-027 | |
| 3 | 14 | 3 | 38 | | 115001-030 | 115000-030 | 115002-030 | 115005-030 | 115007-030 | 115003-030 | 115004-030 | |
| 3 | 14 | 3 | 50 | | 115001-035 | 115000-035 | 115002-035 | 115005-035 | 115007-035 | 115003-035 | 115004-035 | |
| 3 | 14 | 3 | 65 | | 115001-040 | 115000-040 | 115002-040 | 115005-040 | 115007-040 | 115003-040 | 115004-040 | |
| 3 | 14 | 3 | 75 | | 115001-045 | 115000-045 | 115002-045 | 115005-045 | 115007-045 | 115003-045 | 115004-045 | |
| 3 | 14 | 3 | 100 | | 115001-050 | 115000-050 | 115002-050 | 115005-050 | 115007-050 | 115003-050 | 115004-050 | |
| 3 | 12,7 | 6 | 50 | | 115001-052 | 115000-052 | 115002-052 | 115005-052 | 115007-052 | 115003-052 | 115004-052 | |
| 4 | 14 | 6 | 50 | | 115001-055 | 115000-055 | 115002-055 | 115005-055 | 115007-055 | 115003-055 | 115004-055 | |
| 5 | 12,7 | 3 | 38 | | 115001-057 | 115000-057 | 115002-057 | 115005-057 | 115007-057 | 115003-057 | 115004-057 | |
| 5 | 16 | 6 | 50 | | 115001-058 | 115000-058 | 115002-058 | 115005-058 | 115007-058 | 115003-058 | 115004-058 | |
| 6 | 5 | 3 | 37 | | 115001-059 | 115000-059 | 115002-059 | 115005-059 | 115007-059 | 115003-059 | 115004-059 | |
| 6 | 12 | 3 | 44 | | 115001-060 | 115000-060 | 115002-060 | 115005-060 | 115007-060 | 115003-060 | 115004-060 | |
| 6 | 18 | 6 | 50 | | 115001-065 | 115000-065 | 115002-065 | 115005-065 | 115007-065 | 115003-065 | 115004-065 | |
| 6 | 25 | 6 | 50 | | 115001-067 | 115000-067 | 115002-067 | 115005-067 | 115007-067 | 115003-067 | 115004-067 | |
| 6 | 18 | 6 | 100 | | 115001-070 | 115000-070 | 115002-070 | 115005-070 | 115007-070 | 115003-070 | 115004-070 | |
| 6 | 18 | 6 | 150 | | 115001-075 | 115000-075 | 115002-075 | 115005-075 | 115007-075 | 115003-075 | 115004-075 | |
| 8 | 20 | 6 | 65 | | 115001-080 | 115000-080 | 115002-080 | 115005-080 | 115007-080 | 115003-080 | 115004-080 | |
| 8 | 20 | 6 | 170 | | 115001-085 | 115000-085 | 115002-085 | 115005-085 | 115007-085 | 115003-085 | 115004-085 | |
| 10 | 13 | 6 | 58 | | 115001-087 | 115000-087 | 115002-087 | 115005-087 | 115007-087 | 115003-087 | 115004-087 | |
| 10 | 20 | 6 | 65 | | 115001-090 | 115000-090 | 115002-090 | 115005-090 | 115007-090 | 115003-090 | 115004-090 | |
| 10 | 20 | 6 | 170 | | 115001-095 | 115000-095 | 115002-095 | 115005-095 | 115007-095 | 115003-095 | 115004-095 | |
| 10 | 25 | 6 | 70 | | 115001-100 | 115000-100 | 115002-100 | 115005-100 | 115007-100 | 115003-100 | 115004-100 | |
| 11 | 25 | 6 | 70 | | 115001-102 | 115000-102 | 115002-102 | 115005-102 | 115007-102 | 115003-102 | 115004-102 | |
| 12 | 20 | 6 | 64 | | 115001-103 | 115000-103 | 115002-103 | 115005-103 | 115007-103 | 115003-103 | 115004-103 | |
| 12 | 25 | 6 | 70 | | 115001-105 | 115000-105 | 115002-105 | 115005-105 | 115007-105 | 115003-105 | 115004-105 | |
| 12 DIN | 25 | 6 | 70 | | 115001-107 | 115000-107 | 115002-107 | 115005-107 | 115007-107 | 115003-107 | 115004-107 | |
| 12 | 25 | 6 | 175 | | 115001-110 | 115000-110 | 115002-110 | 115005-110 | 115007-110 | 115003-110 | 115004-110 | |
| 12 | 25 | 8 | 70 | | 115001-115 | 115000-115 | 115002-115 | 115005-115 | 115007-115 | 115003-115 | 115004-115 | |
| 16 | 25 | 6 | 70 | | 115001-120 | 115000-120 | 115002-120 | 115005-120 | 115007-120 | 115003-120 | 115004-120 | |
| 16 | 25 | 8 | 70 | | 115001-125 | 115000-125 | 115002-125 | 115005-125 | 115007-125 | 115003-125 | 115004-125 | |
| 20 | 25 | 6 | 70 | | 115001-130 | 115000-130 | 115002-130 | 115005-130 | 115007-130 | 115003-130 | 115004-130 | |
| 20 | 25 | 8 | 70 | | 115001-135 | 115000-135 | 115002-135 | 115005-135 | 115007-135 | 115003-135 | 115004-135 | |
| 25 | 25 | 6 | 70 | | 115001-140 | 115000-140 | 115002-140 | 115005-140 | 115007-140 | 115003-140 | 115004-140 | |
| 25 | 25 | 8 | 70 | | 115001-145 | 115000-145 | 115002-145 | 115005-145 | 115007-145 | 115003-145 | 115004-145 | |
 |
 |
 |
 |
 |
 |
 |
||||||
| d1 | l2 | d2 | l1 | паяные | VHM | 113001 | 113000 | 113002 | 113005 | 113007 | 113003 | 113004 |
| HP-3 | HP-2 | HP-4 | HP-7 | HP-1 | HP-5 | HP-6 | ||||||
| 1,5 | 6 | 3 | 38 | | 113001-015 | 113000-015 | 113002-015 | 113005-015 | 113007-015 | 113003-015 | 113004-015 | |
| 2 | 11 | 3 | 38 | | 113001-025 | 113000-025 | 113002-025 | 113005-025 | 113007-025 | 113003-025 | 113004-025 | |
| 2,5 | 11 | 3 | 38 | | 113001-027 | 113000-027 | 113002-027 | 113005-027 | 113007-027 | 113003-027 | 113004-027 | |
| 3 | 14 | 3 | 38 | | 113001-030 | 113000-030 | 113002-030 | 113005-030 | 113007-030 | 113003-030 | 113004-030 | |
| 3 | 14 | 3 | 50 | | 113001-035 | 113000-035 | 113002-035 | 113005-035 | 113007-035 | 113003-035 | 113004-035 | |
| 3 | 14 | 3 | 65 | | 113001-040 | 113000-040 | 113002-040 | 113005-040 | 113007-040 | 113003-040 | 113004-040 | |
| 3 | 14 | 3 | 75 | | 113001-045 | 113000-045 | 113002-045 | 113005-045 | 113007-045 | 113003-045 | 113004-045 | |
| 3 | 14 | 3 | 100 | | 113001-050 | 113000-050 | 113002-050 | 113005-050 | 113007-050 | 113003-050 | 113004-050 | |
| 3 | 12,7 | 6 | 50 | | 113001-052 | 113000-052 | 113002-052 | 113005-052 | 113007-052 | 113003-052 | 113004-052 | |
| 4 | 14 | 6 | 50 | | 113001-055 | 113000-055 | 113002-055 | 113005-055 | 113007-055 | 113003-055 | 113004-055 | |
| 5 | 12,7 | 3 | 38 | | 113001-057 | 113000-057 | 113002-057 | 113005-057 | 113007-057 | 113003-057 | 113004-057 | |
| 5 | 16 | 6 | 50 | | 113001-058 | 113000-058 | 113002-058 | 113005-058 | 113007-058 | 113003-058 | 113004-058 | |
| 6 | 5 | 3 | 37 | | 113001-059 | 113000-059 | 113002-059 | 113005-059 | 113007-059 | 113003-059 | 113004-059 | |
| 6 | 12 | 3 | 44 | | 113001-060 | 113000-060 | 113002-060 | 113005-060 | 113007-060 | 113003-060 | 113004-060 | |
| 6 | 18 | 6 | 50 | | 113001-065 | 113000-065 | 113002-065 | 113005-065 | 113007-065 | 113003-065 | 113004-065 | |
| 6 | 25 | 6 | 50 | | 113001-067 | 113000-067 | 113002-067 | 113005-067 | 113007-067 | 113003-067 | 113004-067 | |
| 6 | 18 | 6 | 100 | | 113001-070 | 113000-070 | 113002-070 | 113005-070 | 113007-070 | 113003-070 | 113004-070 | |
| 6 | 18 | 6 | 150 | | 113001-075 | 113000-075 | 113002-075 | 113005-075 | 113007-075 | 113003-075 | 113004-075 | |
| 8 | 20 | 6 | 65 | | 113001-080 | 113000-080 | 113002-080 | 113005-080 | 113007-080 | 113003-080 | 113004-080 | |
| 8 | 20 | 6 | 170 | | 113001-085 | 113000-085 | 113002-085 | 113005-085 | 113007-085 | 113003-085 | 113004-085 | |
| 10 | 13 | 6 | 58 | | 113001-087 | 113000-087 | 113002-087 | 113005-087 | 113007-087 | 113003-087 | 113004-087 | |
| 10 | 20 | 6 | 65 | | 113001-090 | 113000-090 | 113002-090 | 113005-090 | 113007-090 | 113003-090 | 113004-090 | |
| 10 | 20 | 6 | 170 | | 113001-095 | 113000-095 | 113002-095 | 113005-095 | 113007-095 | 113003-095 | 113004-095 | |
| 10 | 25 | 6 | 70 | | 113001-100 | 113000-100 | 113002-100 | 113005-100 | 113007-100 | 113003-100 | 113004-100 | |
| 11 | 25 | 6 | 70 | | 113001-102 | 113000-102 | 113002-102 | 113005-102 | 113007-102 | 113003-102 | 113004-102 | |
| 12 | 20 | 6 | 64 | | 113001-103 | 113000-103 | 113002-103 | 113005-103 | 113007-103 | 113003-103 | 113004-103 | |
| 12 | 25 | 6 | 70 | | 113001-105 | 113000-105 | 113002-105 | 113005-105 | 113007-105 | 113003-105 | 113004-105 | |
| 12 DIN | 25 | 6 | 70 | | 113001-107 | 113000-107 | 113002-107 | 113005-107 | 113007-107 | 113003-107 | 113004-107 | |
| 12 | 25 | 6 | 175 | | 113001-110 | 113000-110 | 113002-110 | 113005-110 | 113007-110 | 113003-110 | 113004-110 | |
| 12 | 25 | 8 | 70 | | 113001-115 | 113000-115 | 113002-115 | 113005-115 | 113007-115 | 113003-115 | 113004-115 | |
| 16 | 25 | 6 | 70 | | 113001-120 | 113000-120 | 113002-120 | 113005-120 | 113007-120 | 113003-120 | 113004-120 | |
| 16 | 25 | 8 | 70 | | 113001-125 | 113000-125 | 113002-125 | 113005-125 | 113007-125 | 113003-125 | 113004-125 | |
| 20 | 25 | 6 | 70 | | 113001-130 | 113000-130 | 113002-130 | 113005-130 | 113007-130 | 113003-130 | 113004-130 | |
| 20 | 25 | 8 | 70 | | 113001-135 | 113000-135 | 113002-135 | 113005-135 | 113007-135 | 113003-135 | 113004-135 | |
| 25 | 25 | 6 | 70 | | 113001-140 | 113000-140 | 113002-140 | 113005-140 | 113007-140 | 113003-140 | 113004-140 | |
| 25 | 25 | 8 | 70 | | 113001-145 | 113000-145 | 113002-145 | 113005-145 | 113007-145 | 113003-145 | 113004-145 | |
